Dinghy Dogs |
Inflatable Bladders: Extra strong 20 gauge poly-vinyl chloride fabric. |
|
| Outer covers:
Shelter-Rite™ polyester reinforced vinyl fabric with UV inhibitors. Colors: Blue - White - Gray. Gauge: 18 Pump: Bravo #1 high volume
foot pump with adapters. |
|
|
Attachment system: 3M VHB™ double coated industrial grade acrylic foam tape with super high bond dhesive: .025" thick, 800kg/m3 foam density, 160 lbs./sq." tensile. Tube length: 84" |
|
Includes all materials needed for do-it-yourself installation (even the pump).
If you're not satisfied with the stability of your dinghy, just return entire kit in original condition for a refund less $35 handling charge.
Dinghy Dogs® consist of basically three parts. (1) A set of tracks for each side, (2) two inflatable bladders, and (3) covers to protect the bladders and provide a means of attachment to the boat.

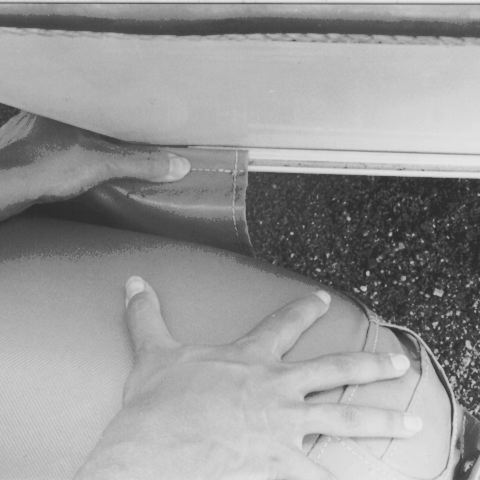

First, tracks are fixed to the side of the boat at the water line midway from bow to stern. The bladders are then slid into their covers. The covers have a flexible PVC rod sewn to a 12" long flap in the center. This rod is slid into the track much like the luff or foot of a sail is slid into its channel. Bladders are inflated and the ends of the covers are tied at the rails to assure the tubes follow the curve of the boat sides.
Detailed instructions are supplied with each set of Dinghy Dogs® along with a pump, line, cleats and screws for securing the tracks. Everything you need to really enjoy your dinghy is supplied in this complete, do-it-yourself kit.
